Exploring the ocean has never been so simple.
ROV can integrate the following products to enrich its functionality. If you need to integrate other products, feel free to contact us!

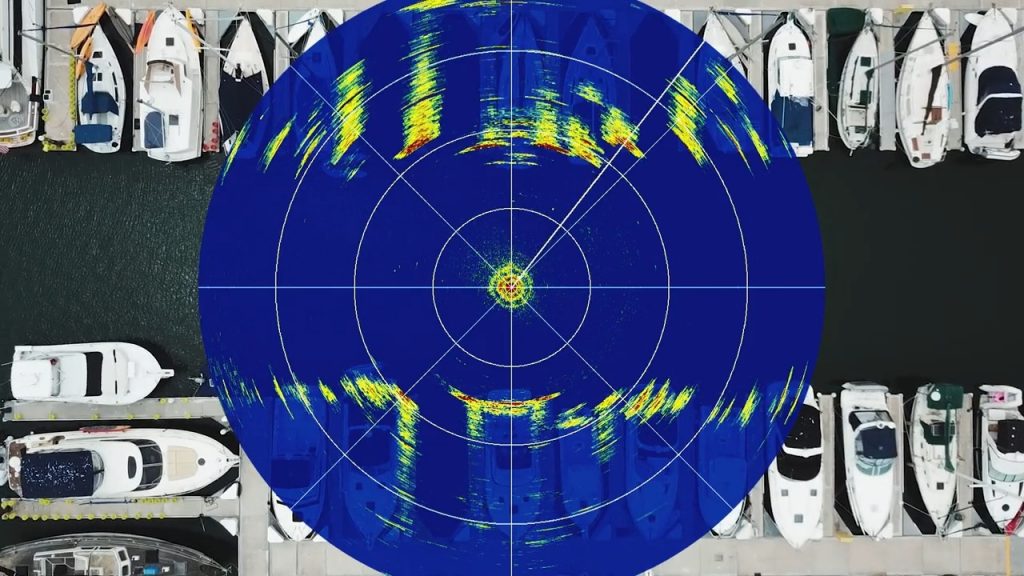

P360 small scanning sonar ( 360° )
- Ten thousand yuan level of high cost-effective underwater scanning sonar
- Seamless integration with FindROV ( ROV reserved design)
- Max. 50 m (165 feet) of 360° panoramic scan
- The working water depth is 300 meters
- Small and convenient, it only weighs 175 grams underwater
- 750kHz，Range Resolution 1.6mm@2m，4.1mm@50m
Fast integration, easy to use
Excellent performance, perfect imaging
Open-source epistasis, simple and easy to use
M750d high-precision multi-beam imaging sonar
- Multi-beam underwater imaging sonar
- offer up to 120 metre range capability @750kHz
- The working water depth is 300 meters
- Horizontal Angle, 130 °
- Small and convenient, it only weighs 360 grams underwater
- The 40m range still provides a resolution of up to 2.5mm
Excellent performance, simple and easy to use
HD imaging, to explore sharp tools
Open-source epistasis, simple and easy to use

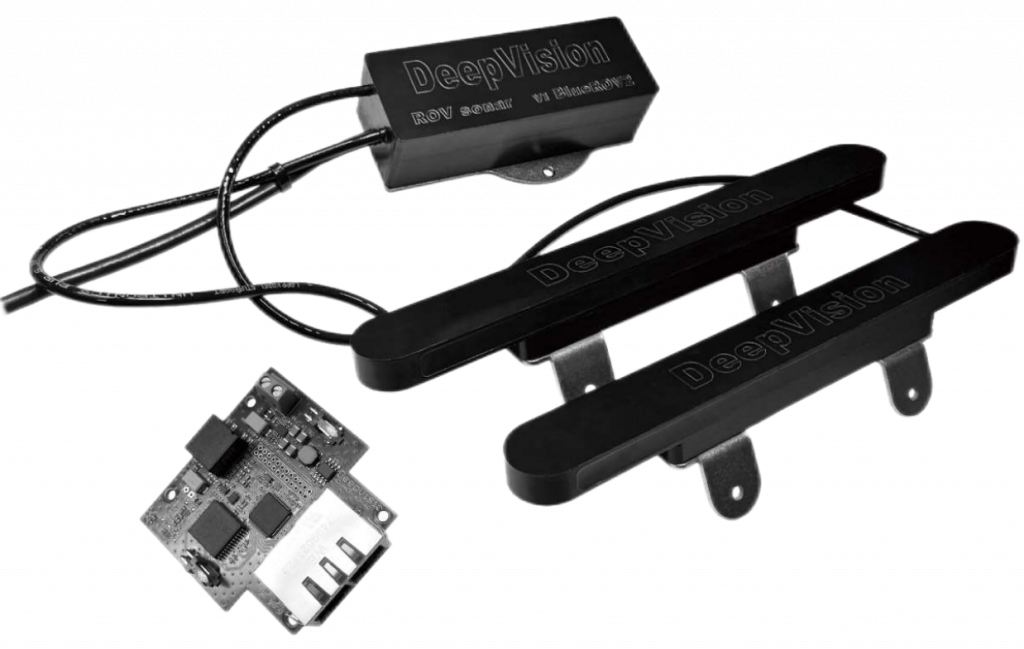

SS60 side scan sonar
- Ten thousand yuan level high cost-effective small underwater side sweep sonar
- Seamless integration with FindROV (ROV reserved design)
- The pressure resistance water depth is as high as 100 meters, easily covering rivers, lakes and seas
- Maximum resolution of up to 1cm (0.39inch)
- 680kHz, A horizontal beam angle of 0.7 °
ROV has reserved holes for easy integration
HD imaging, first-class results
Hardware-level integrated, compact and reliable

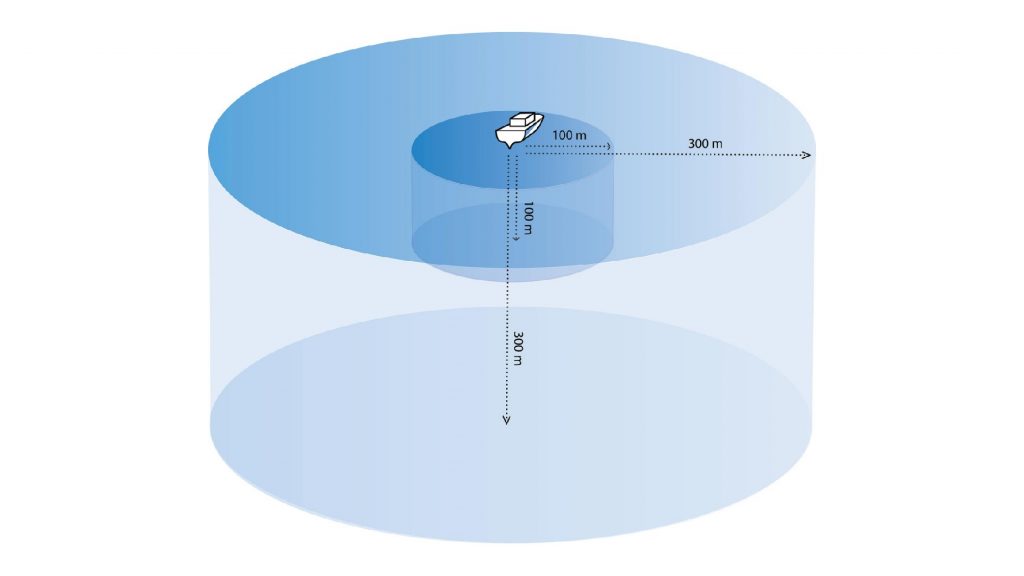

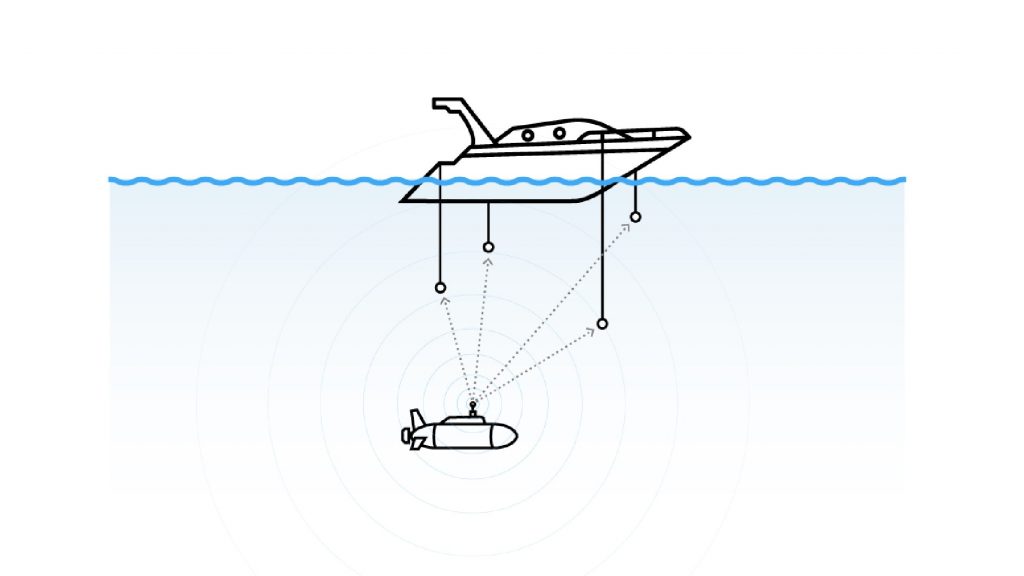

UGPS Underwater Positioning System (SBL Short baseline)
- Ten thousand yuan level high cost-effective small underwater SBL system
- Seamless integration with FindROV (ROV reserved design)
- The pressure resistance water depth is as high as 100/300 meters, easily covering rivers, lakes and seas
- Small and convenient, the underwater part is only a dozen grams
- Simple and easy-to-use Web GUI interface
Work range of level hundred meters
ROV/AUV for easy integration
High software integration
G300 水下机械手
- Thousand yuan level high cost-effective underwater manipulator
- Seamless integration with FindROV (ROV reserved design)
- The pressure resistance water depth is as high as 100 meters, easily covering rivers, lakes and seas
- Maximum clamping force can reach 10kg
- Time to open/close 1.6 secs
- 70mm Jaw Opening
7 cm大开口，轻松夹持
水下干活好帮手
代码级集成，即插即用

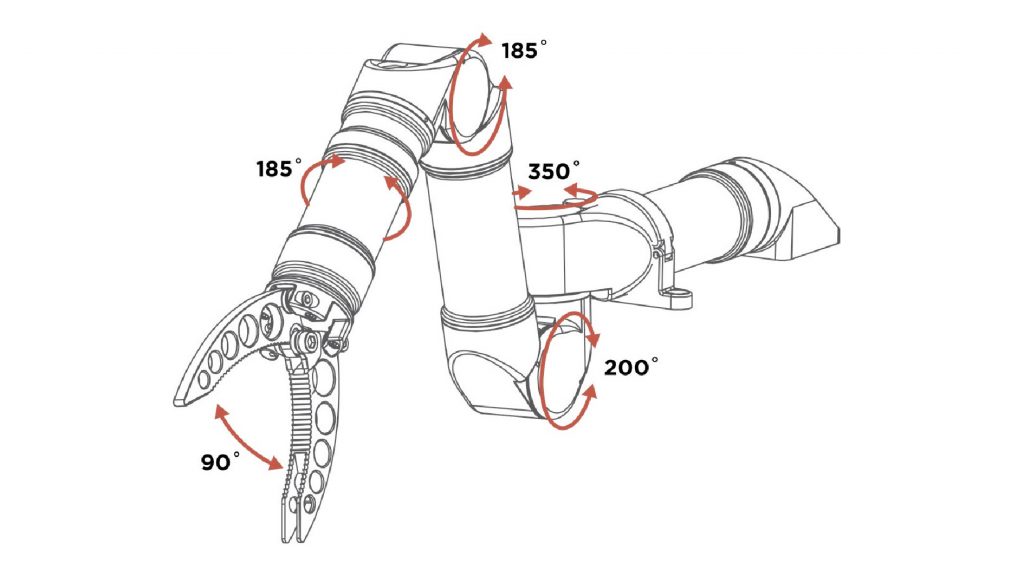

Alpha-5 Five functional manipulator
- Suitable for light operation-class underwater robots ( ROV )
- Modular design for seamless integration with FindROV
- Up to 600N closing force
- The maximum power is only need 35W
- One-click recovery, RS232/485 communication control
Multidegrees of freedom motion
Free custom, multiple claw types
Easy integration and fast into use
