P30 测距声呐 / 高度计
低成本水下回声测距声呐
P30 是一种非常高性价比的单波束回声测深仪,可在水下测量长达 50 米的距离,工作深度可达 300 米。同时开放上位机源代码,是海洋机器人技术的强大辅助工具。
![](http://searobotix.com/wp-content/uploads/2021/08/图片1-1.png)
水下测距新纪元
![](http://searobotix.com/wp-content/uploads/2021/08/图片33.png)
50 米测量范围
![](http://searobotix.com/wp-content/uploads/2021/08/图片30.png)
0.5% 量程范围解析度
![](http://searobotix.com/wp-content/uploads/2021/08/图片35.png)
30° 波束角宽度
![](http://searobotix.com/wp-content/uploads/2021/08/图片29.png)
cm 级精度数据
* 量程精度的实际绝对值随着范围变化而变化,50m 量程时分辨距离为 25cm。
![](http://searobotix.com/wp-content/uploads/2021/08/ping-viewer-1-1024x581.jpg)

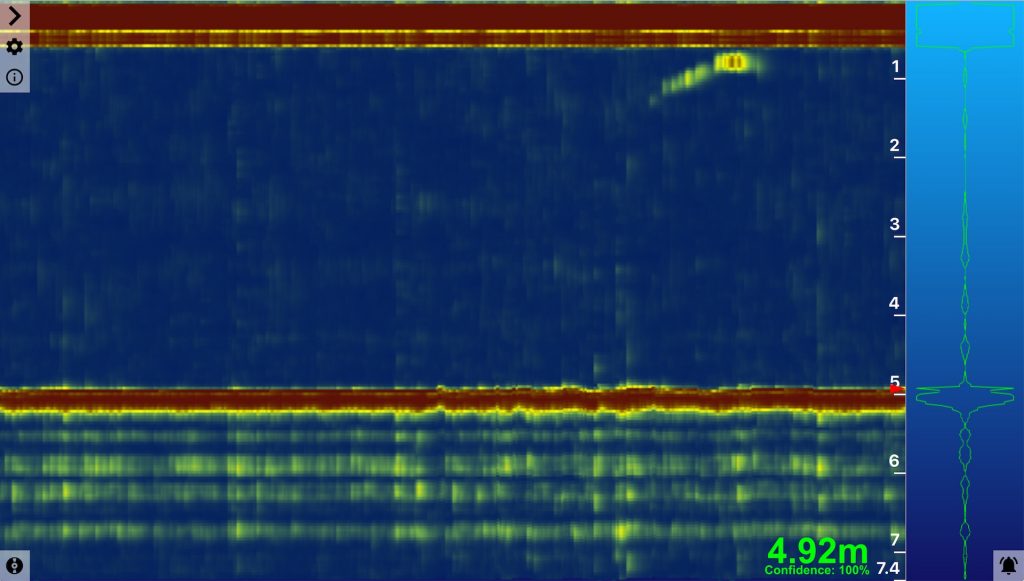

自动目标跟踪算法
P30 自动运行的跟踪算法,会尝试锁定到最显著目标。
考虑到设备的安装:如果声纳指向下方,通常是海底;如果声纳未指向下方,则它也可能是大物体,或者是墙壁或水面。
![](http://searobotix.com/wp-content/uploads/2020/02/Echosounder-Operating-Principle-1024x576-1.png)

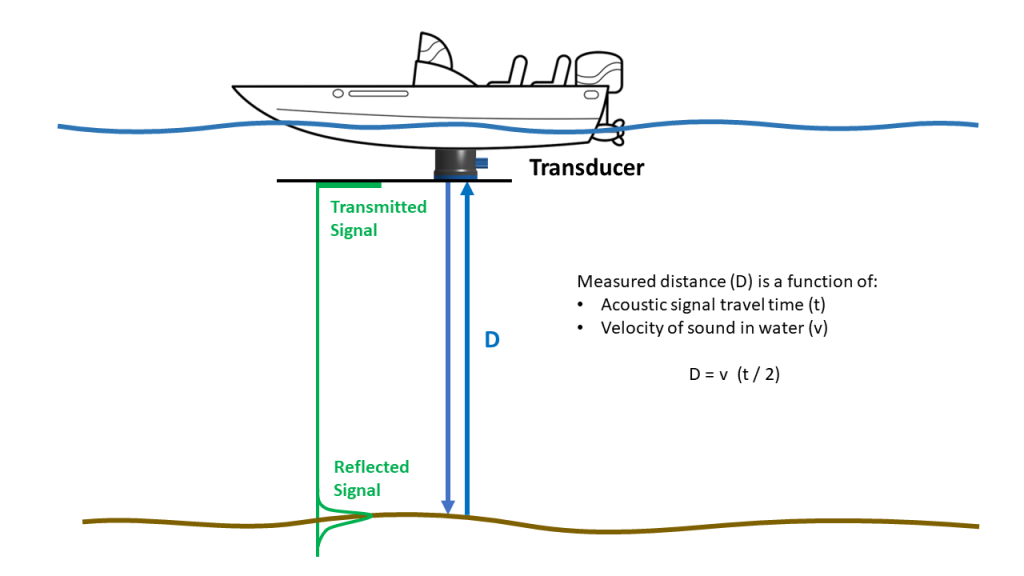

P30 回声测距原理
P30 通过换能器发射 115kHz 脉冲,然后侦听并测量返回的声能强度。声波在水中传播时会反射或反射回固体物体,然后传播回P30。
![](http://searobotix.com/wp-content/uploads/2022/02/20210927_111247-scaled.jpg)

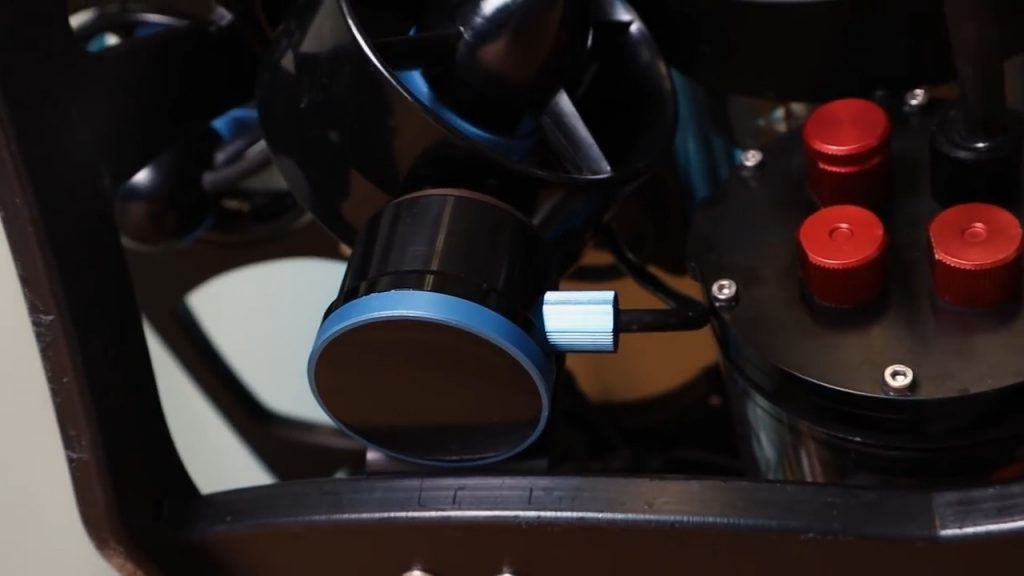

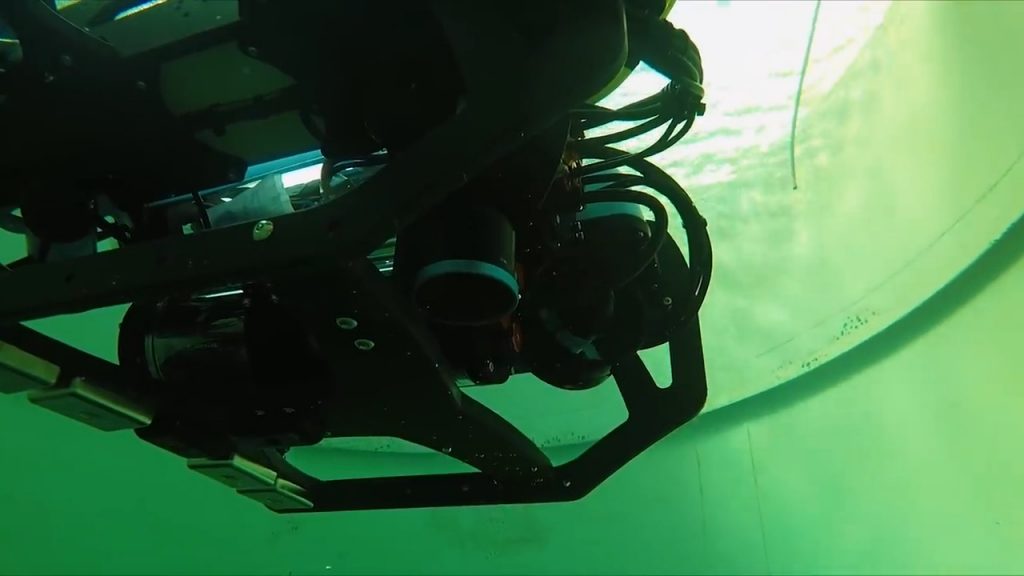

安装方便 无缝集成
P30 可以很方便的安装在 BlueROV2 / FindROV 等水下机器人底部,实现无缝集成,真正做到了到手即用!
![](http://searobotix.com/wp-content/uploads/2021/08/New-Product_-The-Ping-Sonar-Altimeter-and-Echosounder-0-1024x576.jpg)
![](http://searobotix.com/wp-content/uploads/2021/08/New-Product_-The-Ping-Sonar-Altimeter-and-Echosounder-3-1024x576.jpg)
![](http://searobotix.com/wp-content/uploads/2021/08/New-Product_-The-Ping-Sonar-Altimeter-and-Echosounder-1-1024x576.jpg)
![](http://searobotix.com/wp-content/uploads/2021/08/New-Product_-The-Ping-Sonar-Altimeter-and-Echosounder-2-1024x576.jpg)
![](http://searobotix.com/wp-content/uploads/2022/02/2f3183e18957210660977328e6ea437d.jpeg)
水下测距,即刻展开
通过搭载 FindROV / BlueROV等设备后,用户到达作业现场后,可迅速使用 ROV 开展测量、测绘等工作。
