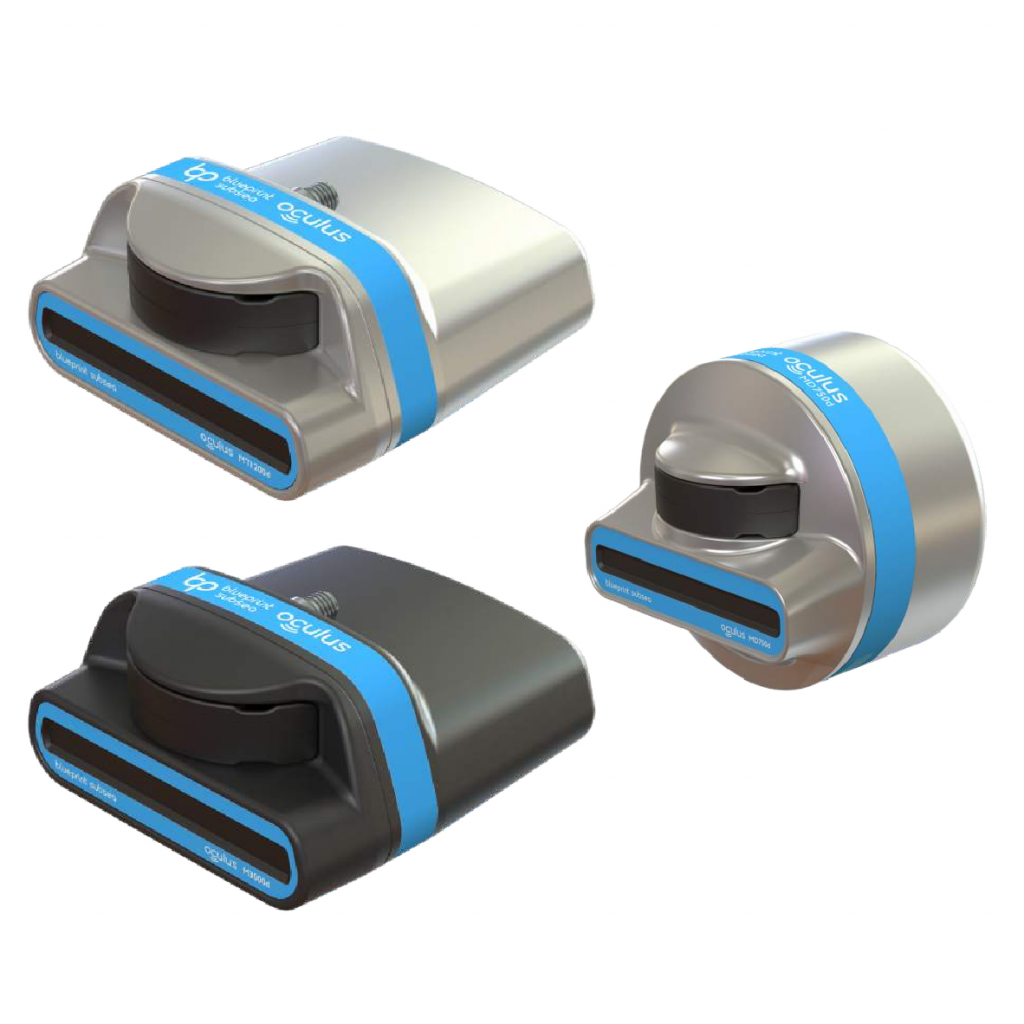

Oculus Multibeam Imaging Sonar
Underwater High‑Definition Imaging Sonar
The Oculus Multibeam Imaging Sonar is a new‑generation compact imaging sonar, widely used in underwater scenarios!
A Powerful Enabler for Underwater Exploration
Wide‑Area Survey
Survey Area Configurable
Millimeter‑Level Imaging Capability
Compact Size
Wide‑Beam Survey — akin to a massive underwater "searchlight"

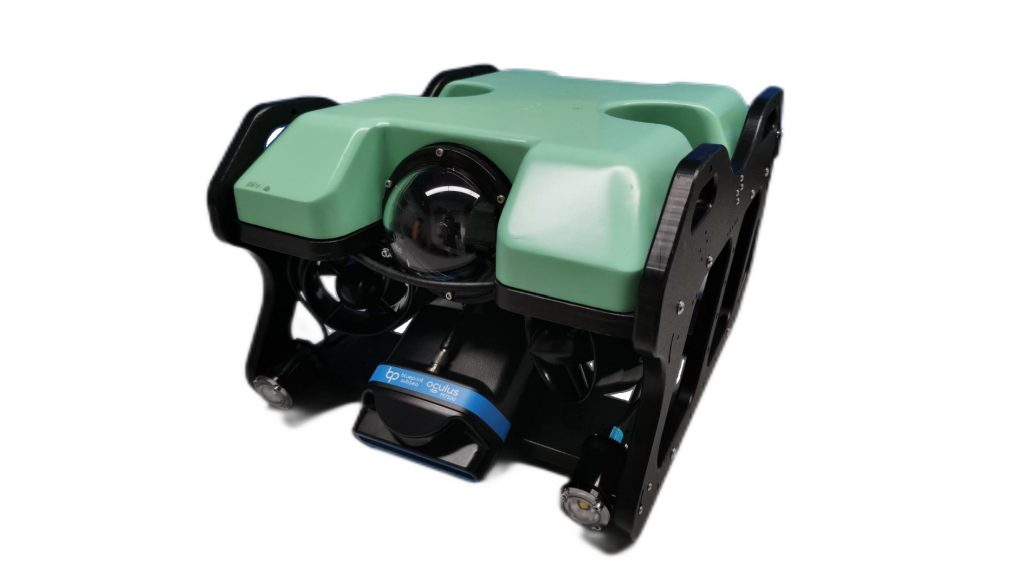

Seamlessly Integrable with FindROV
Multiple Frequencies & Operational Ranges Available
High‑Definition Imaging — An Essential Tool for Underwater Exploration
Easy Installation & Rapid Integration
Available in multiple specifications and models for customer selection, it is highly favored by small to medium‑sized ROVs/AUVs!
Operating Frequency
Range (Max)
Range (Min)
Range Resolution
Update Rate (Max)
Horizontal Aperture
Vertical Aperture
Number of eams (Max)
Angular Resolution
Beam Separation
A750d
MT750d
MD750d
750kHz / 1.2MHz
120m / 40m
0.1m
4mm / 2.5mm
40Hz
130° / 130°
20° / 20°
512
1° / 0.6°
0.25° / 0.25°
A1200d
MT1200d
MD1200d
1.2MHz / 2.1MHz
40m / 10m
0.1m
2.5mm / 2.5mm
40Hz
130° / 60°
20° / 12°
512
0.6° / 0.4°
0.25° / 0.16°
A3000d
MT3000d
MD3000d
1.2MHz / 3.0MHz
30m / 5m
0.1m
2.5mm / 2mm
40Hz
130° / 40°
20° / 20°
512
0.6° / 0.4°
0.25° / 0.1°
Underwater Exploration — Launching Now
By carrying equipment such as FindROV or BlueROV, users can quickly deploy an ROV upon arriving at the worksite to perform measurement, mapping, and other tasks.
