Electrical
| Supply Voltage | 4.5 - 5.5 V DC | |
| Communication Protocol | UART Serial Port Communication | |
| TTL Voltage Level | 3.3 - 5V DC | |
| Typical Current Draw | 100 milliamps |
Cable
| Diameter | 4.5 mm | |
| Cable Length | 830 mm | |
| Cable housing materials | Black polyurethane | |
| Conductor insulation material | Polypropylene | |
| Conductor Gauge | 24 AWG | |
| Wires | Red - VCC - Power | |
| Black - GND -Ground | ||
| Green - Rx - Data acceptance | ||
| White - Tx - Data Transmition |
Acoustics
| Frequency | 115 kHZ | |
| Beamwidth | 30° | |
| Minimum Range | 0.5 m | |
| Typical Usable Range | 50 m | |
| Range Resolution | 0.5% of range | |
| Range Resolution at 2m | 1 cm |
Physical
| Pressure Rating | 300m | |
| Temperature Range | 0-30 ℃ | |
| Weight in Air (w/ cable) | 135 g | |
| Weight in Air (without cable) | 100g | |
| Weight in Water (w/ cable) | 48g | |
| Mounting Bracket Screw Size | M5 × 0.4 mm |

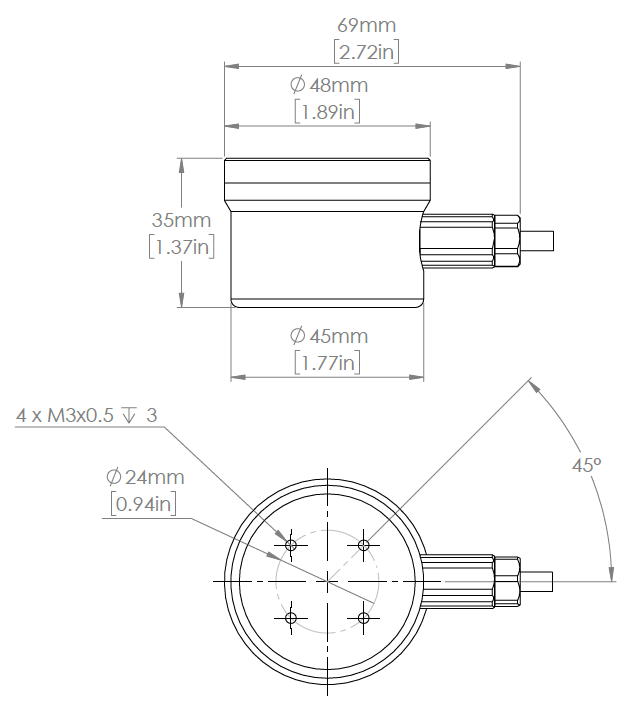

2D Drawings
