Physical Parameter

Camera PCB Dimensions32 mm × 32 mm
Mounting Hole Spacing28 mm × 28 mm
Working Temperature-20 ~ 75 ℃
ConnectorJST-PH to USB
Mass (total)17 g
Mass (without cable)13.5 g

Lens Parameter

Mount TypeM12 × 0.5
Field of View (Horizontal)80°
Field of View (Vertical)64°
Focal Length2.97 mm

Sensor Parameter

TypeSony Exmor IMX322 / IMX323
Format 1/2.9''
Pixel Size2.8 μm (H) × 2.8 μm (V)
Distortion1 %
Total pixels*2000 (H) × 1121 (V) ~2.24 MP
Recording pixels1920 (H) × 1080 (V) ~2.07 MP
Minimum Illumination0.01 lux
Sensitivity5.0 V/lux-sec @550nm

Recording Parameter

Standard1080p30
Compression formatH.264 / MJPEG / YUV2 (YUYV)

Electrical Parameter

Supply Voltage5 V
Max Power Draw220 mA

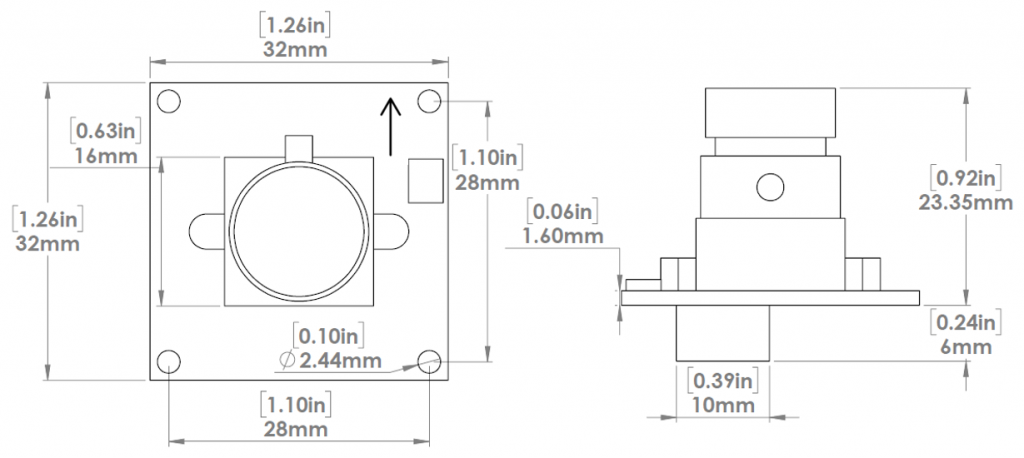

2D Drawings
