Parameter
Maximum Tested Depth1 | 950 m | 3116 ft |
Design Lifetime1,2 | 3 years or 500 cycles to rated depth | |
Reuse Recommendations | ||
Bulkhead and Plug | reusable up to 3 times | |
Seal | not reusable |
1 For reference only, performance may vary depending on application and cable construction, it is the responsibility of the customer to determine suitability for their application.
2 Design life was used to inform testing in an accelerated environment, does not reflect warranty period.
Size Index
![](http://searobotix.com/wp-content/uploads/2022/02/图片2-1024x588.jpg)
![](http://searobotix.com/wp-content/uploads/2022/02/图片3-1024x565.jpg)
Seal Size
Bulkhead Sizes
Conductor Bore Diameter
Plug Compression
Plug Compression
Part Number
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-4.5.png)
4.5
M06
M10
3.3mm
High(HC)
Low(LC)
4.0±0.3mm
4.5±0.3mm
WLP-M06-4.5MM-HC
WLP-M10-4.5MM-HC
WLP-M06-4.5MM-LC
WLP-M10-4.5MM-LC
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-5.5.png)
5.5
M10
4.0mm
High(HC)
Low(LC)
5.0±0.3mm
5.5±0.3mm
WLP-M10-5.5MM-HC
WLP-M10-5.5MM-LC
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-6.5.png)
6.5
M10
4.8mm
High(HC)
Low(LC)
6.0±0.3mm
6.5±0.3mm
WLP-M10-6.5MM-HC
WLP-M10-6.5MM-LC
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-7.5.png)
7.5
M10
5.7mm
High(HC)
Low(LC)
7.0±0.3mm
7.5±0.3mm
WLP-M10-6.5MM-HC
WLP-M10-6.5MM-LC
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-8.5.png)
8.5
M10
6.0mm
High(HC)
Low(LC)
8.0±0.3mm
8.5±0.3mm
WLP-M10-8.5MM-HC
WLP-M10-8.5MM-LC
![](http://searobotix.com/wp-content/uploads/2022/02/WLP-SEAL-9.5.png)
9.5
M14
7.5mm
High(HC)
Low(LC)
9.0±0.3mm
9.5±0.3mm
WLP-M14-9.5MM-HC
WLP-M14-9.5MM-LC

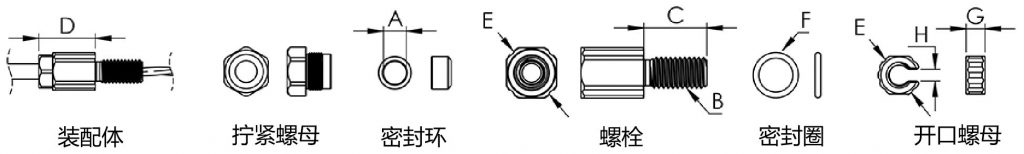

Physical Parameter
![](http://searobotix.com/wp-content/uploads/2022/02/图片4-1024x154.jpg)
Bulkhead Size | M06 | M10 | M14 |
Seal Sizes (A) | 4.5 | 4.5, 5.5, 6.5, 7.5, 8.5 | 9.5 |
Bulkhead Thread (B) | M6×1 | M10×1.5 | M14×1.5 |
Bulkhead Thread Length (C) | 10mm | 20mm | 25mm |
Recommended Bulkhead Through Hole Size | 6.2mm | 10.2mm | 14.2mm |
Assembled Height from Endcap (D) | 23.5mm | 18~26mm | 23mm |
Overall Outer Diameter (E) | 13mm | 18mm | 22mm |
O-ring Size (F) | 1.5×7 mm Buna-N 70A | AS568-013 Buna-N 70A | 1.5×15 mm Buna-N 70A |
Nut Height (G) | 4mm | 8mm | 8mm |
Nut Slot Width (H) | 3.5mm | 5mm | 9mm |
Assembled air weight (no cable) | 7.6g | 13.9~15.6g | 24.9g |
Assembled water weight (no cable) | 5.1g | 10.2~10.7g | 16.4g |
Seal Material | FKM | FKM | FKM |
Seal Material Temperature Range | -25~200℃ | -25~200℃ | -25~200℃ |
Bulkhead / Plug Material | 7075-T6 Aluminum, Anodized | 7075-T6 Aluminum, Anodized | 7075-T6 Aluminum, Anodized |
Tools parameter
Seal Size | 4.5 | 4.5 | 5.5, 6.5, 7.5, 8.5 | 9.5 |
Bulkhead Size | M06 | M10 | M10 | M14 |
Bulkhead Wrench | WL-M06-BULKHEAD-WRENCH | WL-M10-BULKHEAD-WRENCH | WL-M10-BULKHEAD-WRENCH | WL-M14-BULKHEAD-WRENCH |
Bulkhead/Nut Flat Size | 12mm | 16mm | 16mm | 20mm |
Bulkhead | 1N·m | 3.5N·m | 3.5N·m | 3.5N·m |
Plug Wrench | WLP-11MM-PLUG-WRENCH | WLP-11MM-PLUG-WRENCH | WLP-14MM-PLUG-WRENCH | WLP-18MM-PLUG-WRENCH |
Plug Hex Size | 11mm | 11mm | 14mm | 18mm |
Plug Installation | 14N·m | 14N·m | 14N·m | 20N·m |
